| 显示内容 | 产品图 | 型号 | 尺寸 (寸) |
外形尺寸 (mm) |
视域尺寸 (mm) |
引脚 | 视角 | 接口 | IC Part No. | 亮度 (cd/m²) |
温度 (°C) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 480*480 |  |

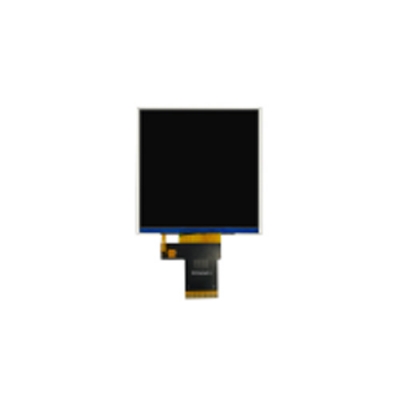

QT-T40ST40ZP01 | 4.00 | 75.66(H) ×78.23(W) ×2.2(T) | 71.856 (H) × 70.176 (W) | 40PIN | All Viewing direction | RGB | ST7701S | 300Cd/m3 | |
| 480(RGB)*800 |  |
QT-T397NT40RP01 | 3.97 | 55.44(H)*96.2(V)*1.7 | 51.84(H)*86.31(V) | 40PIN | ALL | RGB 24BIT | R61408 | 400Cd/m3 | |
| 480(RGB)*800 |  |
QT-T397ST40MP01 | 3.97 | 55.44(H)*96.2(V)*1.7 | 51.84(H)*86.31(V) | 40PIN | ALL | MIPI 2LANE | ST7701S | 400Cd/m3 | - 20~+70°C |
| 480 (RGB)*800 |  |
QT-T397ST24WP01 | 3.97 | 57.14(H)*96.85(V)*2.25 | 51.84(H)*86.40(V) | 24pin | TN-12 o`clock | MIPI | ST7701S | T.B.D | - 20~+70°C |
| 320(RGB)*480 |  |
QT-T35NT25WP01 | 3.50 | 54.48(H)*84.71(V)*2.3 | 48.96(H)*73.44(V) | 25pin | TN-12 o`clock | MIPI | ST7796S | T.B.D | - 20~+70°C |
| 320 * RGB * 480 |  |
QT-T35ST35ZP01 | 3.50 | 54.50（W）* 83（H） * 2.15(T) | 48.96* 73.44 | 35pin | IPS | RGB | ST7796S | T.B.D | - 20~+70°C |
| 320RGB*240 |  |
QT-T35NT54WP01-T | 3.50 | 63.9(H)*76.9(W)*3.3(T) | 52.56(H)*70.08(W) | 54pin | TN-12 o`clock | 并口 RGB | HX8238D | 230CD/m3 | - 20~+70°C |
| 640 x 480 |  |
QT-T35ST54GP01 | 3.50 | 76.9x63.9x3.28 | 70.08 x 52.56 | 54pin | IPS | RGB 24bit | T.B.D | 400Cd/m3 | - 20~+70°C |
| 320(RGB) X 240 |  |
QT-T35ST54ZP02 | 3.50 | 76.9x63.9x3.28 | 70.08 x 52.56 | 54pin | IPS | RGB 24bit | T.B.D | 400Cd/m3 | - 20~+70°C |
| 320(RGB) X 240 |  |
TM035KDH03-79 | 3.50 | 76.9x63.9x3.15 | 70.08 x 52.56 | 54pin | TN-12 o`clock | RGB/CCIR656/601 | NV3035C | 300Cd/m3 | - 20~+70°C |
| 320RGB*240 |  |
QT-T35NT54WP01 | 3.50 | 63.9(H)*76.9(W)*3.3(T) | 52.56(H)*70.08(W) | 54pin | TN-12 o`clock | 并口 RGB | HX8238D | 230CD/m3 | - 20~+70°C |
| 320(RGB) * 480 |  |
QT-T35NT40ZP01 | 3.50 | 53.5*83.31*2.5 | 48.96*77.44 | 40PIN | TN-12 o`clock | MIPI | ILI9488 | - 20~+70°C |
